EcoGrid E80 – Resilience in Action!
Earlier in 2025, we proudly introduce the EcoGrid E80—a powerhouse in ground reinforcement solutions engineered for the toughest demands. Now, we’re excited to share video proof of just how incredibly resilient and hard-wearing this system truly is!
Why E80?
The EcoGrid E80 is specifically designed for extreme load-bearing and high-traffic applications, making it the go-to choice for demanding environments.
E80 Key Specifications:
- Dimensions: 330 x 330 x 80mm
- Wall Thickness: 8mm
- Wall Height: 80mm
- Weight per Unit:02 kg
- Material: 100% recycled polyethylene (PE)
- Load Capacity:
- Up to 800t/sqm unfilled
- 1500+ t/sqm filled
- 20t axle load when filled (DIN 1072 compliant)
- Pressure Resistance: Up to 10t unfilled, 20t filled
- Laying Time: 80 sqm/hour
- Temperature Stability: -50°C to +90°C
- Moisture Absorption:01%
The system is delivered in locked layers of 12 tiles, making installation both quick and efficient.
Where Can You Use E80?
Thanks to its high durability and versatility, the E80 is ideal for:
- Truck and HGV areas
- Industrial yards and loading zones
- Construction access roads
- Emergency and escape routes
- Heavy-duty storage areas
- Airfields and aviation surfaces
- Temporary event flooring and high-traffic zones
Built to Last
EcoGrid E80 is not just tough—it’s sustainable. Made from 100% recycled PE, it’s resistant to acids, alkalis, oils, de-icing salts, and more. With certifications like DIN 1072, DIN 38412, and TÜV Unlimited Lifespan, it offers long-term reliability with minimal environmental impact.

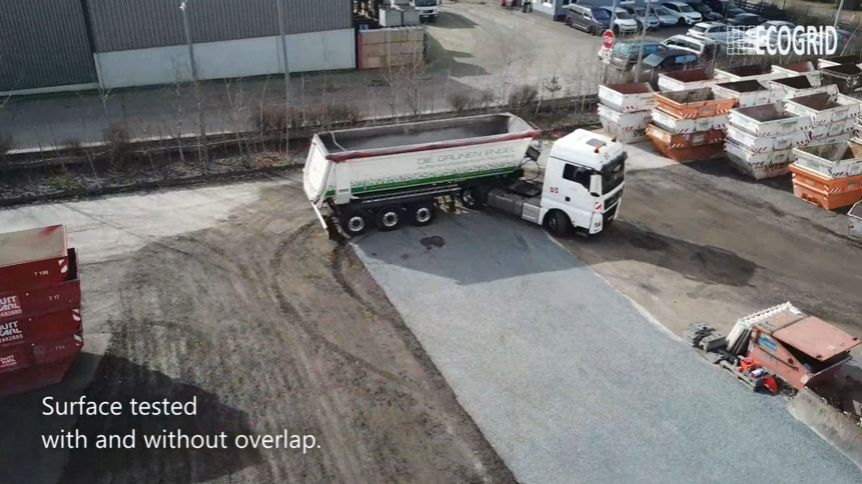

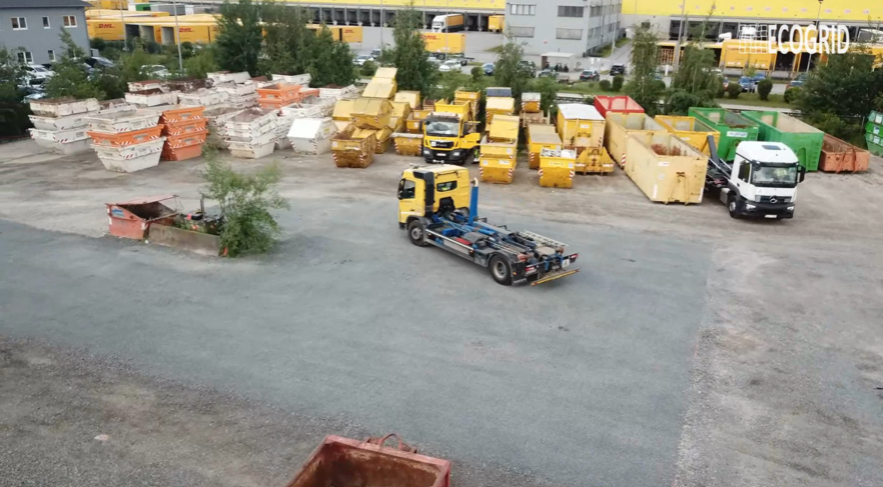

Seeing is Believing
Our latest video showcases the true strength of EcoGrid E80 under extreme conditions. Watch as it stands up to immense weight, heavy vehicle traffic, and tough handling—proof that E80 performs exactly as promised.
